Full Big Gun 100Ft+ Radius

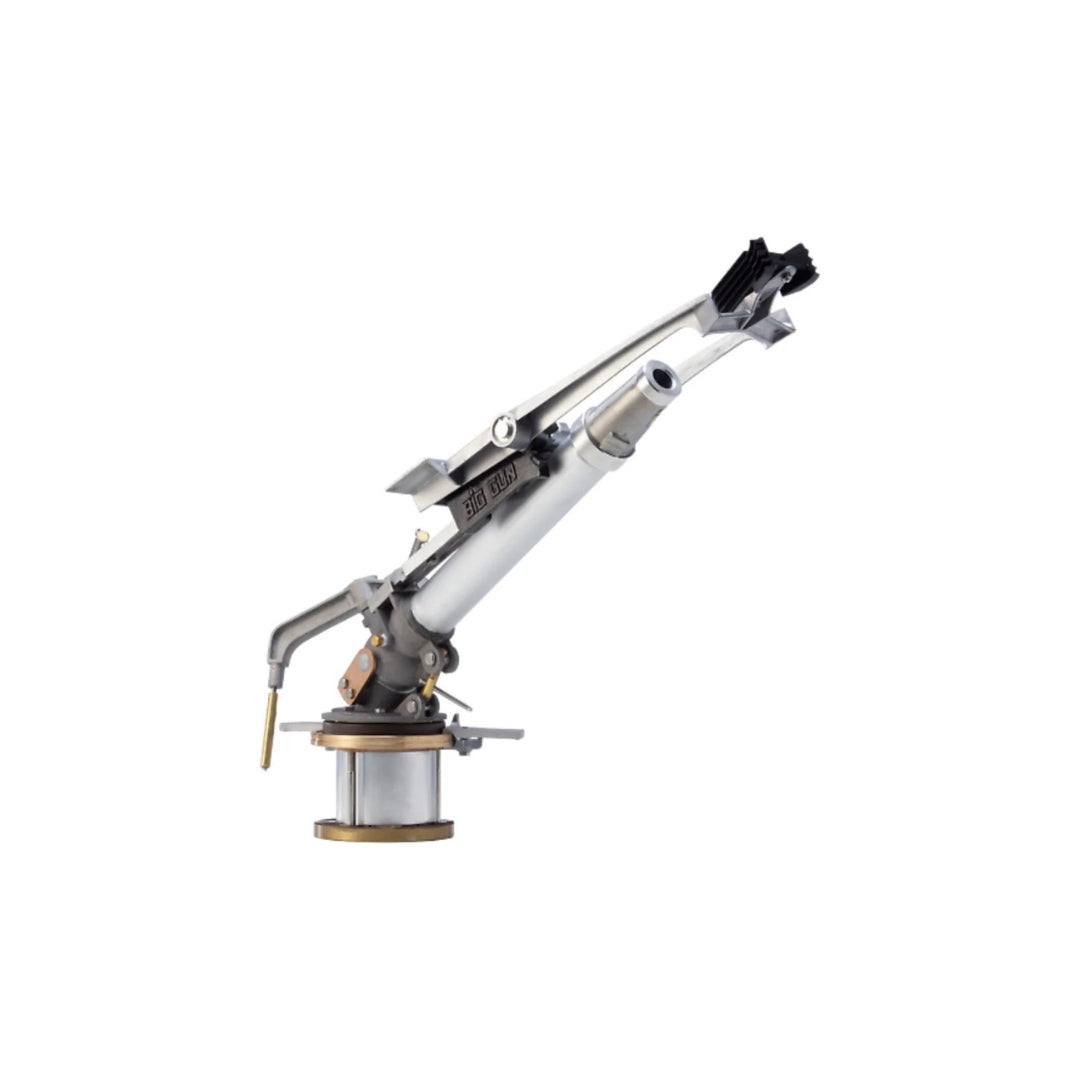

LSF125A Nelson F75 Full Big Gun 100Ft+ Radius

Short Description
Compact yet powerful part/full-circle sprinkler gun ideal for pivot end gun and solid set irrigation with 75–140 ft radius.

Product Overview
The Nelson 75 Series Big Gun® is the smallest yet highly capable member of the Big Gun family, engineered for situations where high-performance irrigation is needed but flow or pressure is limited. Designed for use in solid set irrigation, center pivot end guns, and edge applications, it offers reliable performance with a radius range of 75 to 140 feet. Its rugged construction includes the same heavy-duty lower bearing used in larger Big Gun models, ensuring durability under demanding field conditions. The 75 Series is also compatible with QC100 quick-coupling for flexible portable setups.

Key Features

• Ideal for limited flow and pressure irrigation systems

• Full or part-circle adjustable operation

• Long throw radius up to 140 ft (43 m)

• Interchangeable Taper Ring Nozzles for easy flow customization

• Rugged design with heavy-duty bearings for long-term reliability

• Multiple trajectory angles available: 18°, 21°, 24°, and 43°

• Compatible with Nelson QC100 for quick-coupling portability

• Suited for pivot end guns, solid set, and portable systems

Product Specifications

• Model: Nelson 75 Series Big Gun®

• Flow Rate: 25–160 GPM (6–36 m³/hr)

• Operating Pressure: 25–80 PSI (1.75–5.5 bar)

• Radius: 75–140 ft (23–43 m)

• Trajectory Options: 18°, 21°, 24°, 43°

• Operation: Full or Part Circle

• Connection Type: Female Thread / QC Compatible

• Material: Corrosion-resistant aluminum and brass construction
