TORO PROPASS 200

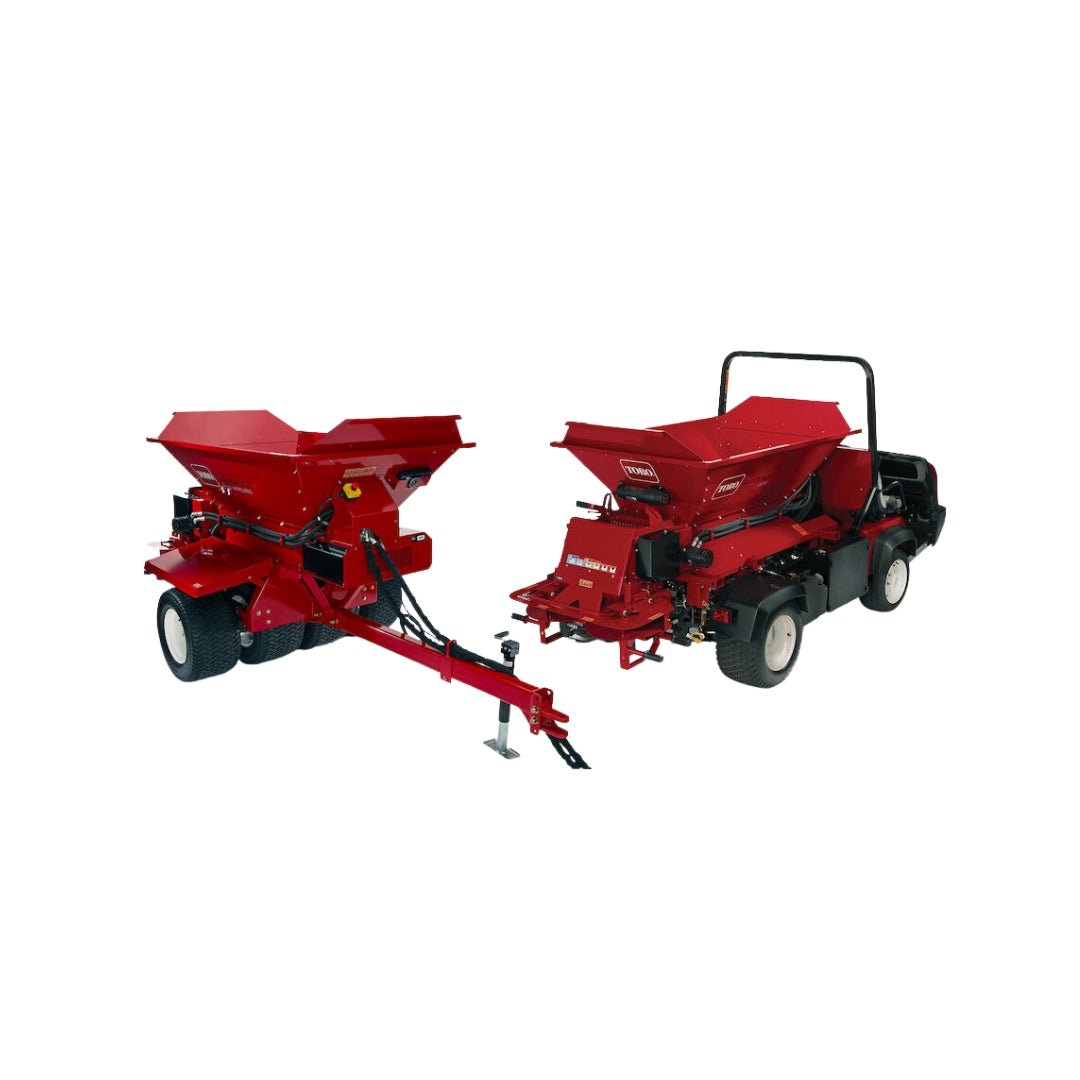

Toro ProPass™ 200 Series Top Dresser – 21 cu.ft. (Model 44701)

Short Description
The Toro ProPass™ 200 delivers precise, uniform topdressing across greens, tees, and fairways. With twin spinner control, wireless operation, and a 21 cu.ft. hopper, it’s ideal for light dustings to heavy applications—all with minimal turf impact.

Product Overview
The ProPass™ 200 Series is a high-capacity, broadcast-style top dresser engineered for professional turf management. Its twin spinners provide accurate material spread from 9 ft to 30 ft, ensuring even coverage with no guesswork. The built-in wireless controller allows easy operation and adjustment of spread settings from up to 100 yards away. Its wedge-style tailgate ensures consistent material flow—wet or dry—while the walking beam suspension keeps all four tires in contact with the ground, minimizing turf disruption. Available in both tow-behind and vehicle-mounted configurations, the ProPass™ 200 adapts to different course needs and terrains effortlessly.

Key Features

• 21 cu.ft. hopper with smooth belt and tight rubber seal to prevent material loss

• Twin spinner system offers adjustable spread width from 9 ft to 30 ft

• Spinner disks fixed at 4° angle for better turf canopy penetration

• Wireless controller (optional) for remote operation up to 100 yards

• Patented color-coded system simplifies spread pattern setup

• Tailgate with wedge-action pivot for controlled, consistent flow

• Mount options: bed-mounted or tow-behind configurations

• Walking beam suspension ensures even ground contact on all four wheels

• Easily swap between twin spinner and cross conveyor/swivel kit (optional)

• Built for reliable use with both light and heavy topdressing materials

Product Specifications

• Model: 44701

• Hopper Capacity: 21 cu.ft. struck / 25 cu.ft. heaped (0.54–0.71 cu. m)

• Spread Width: Adjustable up to 30 ft (9.1 m)

• Wireless Controller: Optional (range up to 100 yards)

• Tailgate: Wedge-style pivot design

• Suspension: Four-wheel walking beam suspension

• Belt Type: One-piece vulcanized, self-tracking conveyor

• Mount Options:

• Bed-mounted: Length 78" (1.98 m), Weight 636–841 lbs. (288.5–381.5 kg)

• Tow-behind: Length 134" (3.4 m), Weight 1,026–1,386 lbs. (465.4–628.7 kg)

• Width: 65" (1.65 m)

• Height: 56" (1.4 m)

• Tires: 24 x 13 - 12", 4-ply

• Payload Capacity: 2,000 lbs. (907 kg)

• Tow Requirements: Towing capacity: 3,400 lbs. | Tongue weight: 300 lbs.

• Hydraulic Requirements:

• Min: 6 gal/min @ 2,000 psi (23 L/min @ 138 bar)

• Max: 10 gal/min @ 2,800 psi (38 L/min @ 190 bar)

• Optional Accessories: Cross Conveyor / Swivel Kit, Hydraulic Power Pack
